W-Heavy Alloys

Tungsten Heavy Alloys [WNiFe and WNiCu]

Tungsten heavy Alloys: high-density materials with exceptional properties

Tungsten heavy alloys are high-performance tungsten-based materials that impress with their extreme density and outstanding mechanical properties. The combination of tungsten with additional elements such as nickel, iron, copper and molybdenum produces materials that are ideal for a wide range of industrial and military applications.

MOLYTUN GmbH offers these tungsten heavy alloys under the brand names DensM® and DensM® P, which are tailored to specific requirements.

For detailed information on the material properties, available dimensions and tolerances, please refer to the following table or the corresponding material data sheets.

Product selection and material properties:

We supply the following material alloys as standard grades

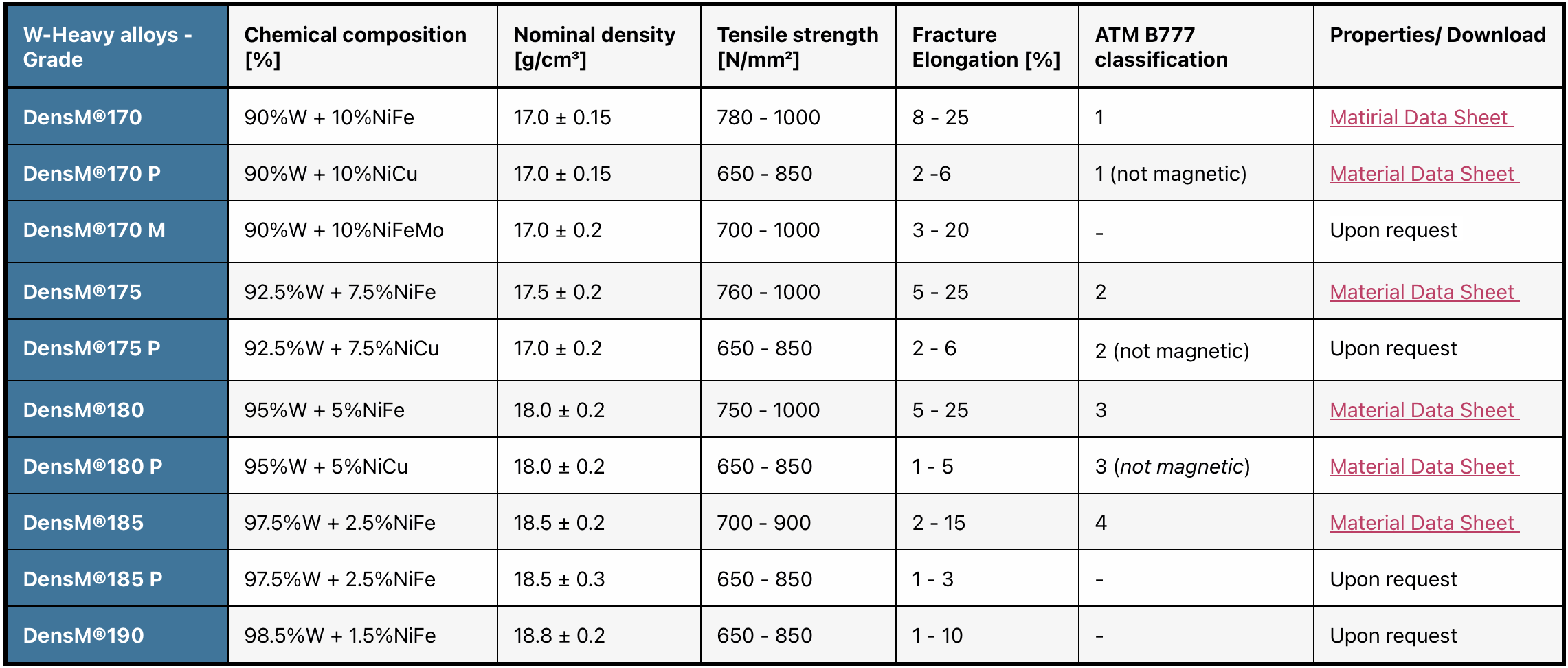

W-Heavy alloys - Grade	Chemical composition [%]	Nominal density [g/cm³]	Tensile strength [N/mm²]	Fracture Elongation [%]	ATM B777 classification	Properties/ Download
DensM®170	90%W + 10%NiFe	17.0 ± 0.15	780 - 1000	8 - 25	1	Matirial Data Sheet
DensM®170 P	90%W + 10%NiCu	17.0 ± 0.15	650 - 850	2 -6	1 (not magnetic)	Material Data Sheet
DensM®170 M	90%W + 10%NiFeMo	17.0 ± 0.2	700 - 1000	3 - 20	-	Upon request
DensM®175	92.5%W + 7.5%NiFe	17.5 ± 0.2	760 - 1000	5 - 25	2	Material Data Sheet
DensM®175 P	92.5%W + 7.5%NiCu	17.0 ± 0.2	650 - 850	2 - 6	2 (not magnetic)	Upon request
DensM®180	95%W + 5%NiFe	18.0 ± 0.2	750 - 1000	5 - 25	3	Material Data Sheet
DensM®180 P	95%W + 5%NiCu	18.0 ± 0.2	650 - 850	1 - 5	3 (not magnetic)	Material Data Sheet
DensM®185	97.5%W + 2.5%NiFe	18.5 ± 0.2	700 - 900	2 - 15	4	Material Data Sheet
DensM®185 P	97.5%W + 2.5%NiFe	18.5 ± 0.3	650 - 850	1 - 3	-	Upon request
DensM®190	98.5%W + 1.5%NiFe	18.8 ± 0.2	650 - 850	1 - 10	-	Upon request
