TZM
TZM and HCM molybdenum alloys for high-temperature applications
TZM and HCM are special heat-resistant molybdenum alloys consisting of over 98 % molybdenum, supplemented by small amounts of titanium, zirconium, hafnium and carbon. These alloying elements (Ti, Zr, Hf and C) not only ensure solid solution hardening, but also dispersion hardening. This creates finely dispersed oxide and carbide particles that prevent undesirable grain growth at high temperatures – a phenomenon that often occurs with pure molybdenum. Thanks to these properties, TZM and HCM are particularly suitable for use under extreme thermal conditions.
Product selection and material properties
We supply the following material alloys as standard grades

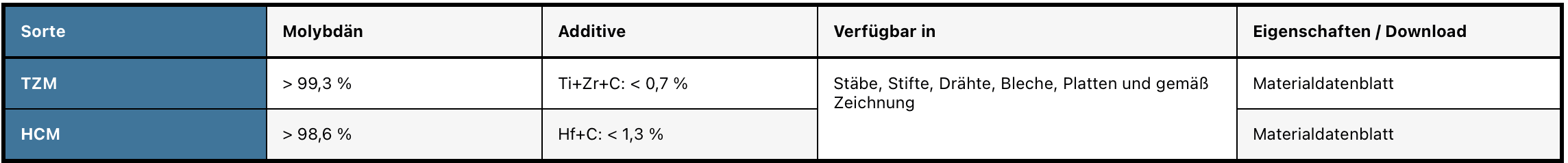

Grade | Molybdenum | Additives | Available in | Properties / Download |
TZM | > 99.3 % | Ti+Zr+C: < 0.7 % | Rods, electodes, pins, sheets, plates or according to drawing | Material Data Sheet |
HCM | > 98.6 % | Hf+C: < 1.3 % | Material Data Sheet |
Metallography
Specifications and standards
Our molybdenum meets the specifications:
- ASTM F289 (Standard Specification for Molybdenum Wire and Rod for Electronic Applications)
- ASTM B386 (Standard Specification for Molybdenum and Molybdenum Alloy Plate, Sheet, Strip, Foil, and Ribbon)
- ASTM B387/B387M-23 (Standard Specification for Molybdenum and Molybdenum Alloy Bar, Rod, and Wire)
- ASTM F364 (Standard Specification for Molybdenum Flattened Wire for Electron Tubes)
Delivery program
Rods, pins, wires, sheets, plates and finished parts according to customer drawings
