Tungsten-Copper
Tungsten-copper [WCu]
Tungsten-copper (WCu) is a group of tungsten-based composite materials consisting of 50 to 90 % tungsten and the remaining proportion of copper. The combination of the elements tungsten and copper gives these materials unique properties for numerous industrial applications. The high hardness, high modulus of elasticity and outstanding wear and erosion resistance of tungsten are combined with the excellent electrical and thermal conductivity of copper.
Product selection and material properties
We supply the following material alloys as standard grades

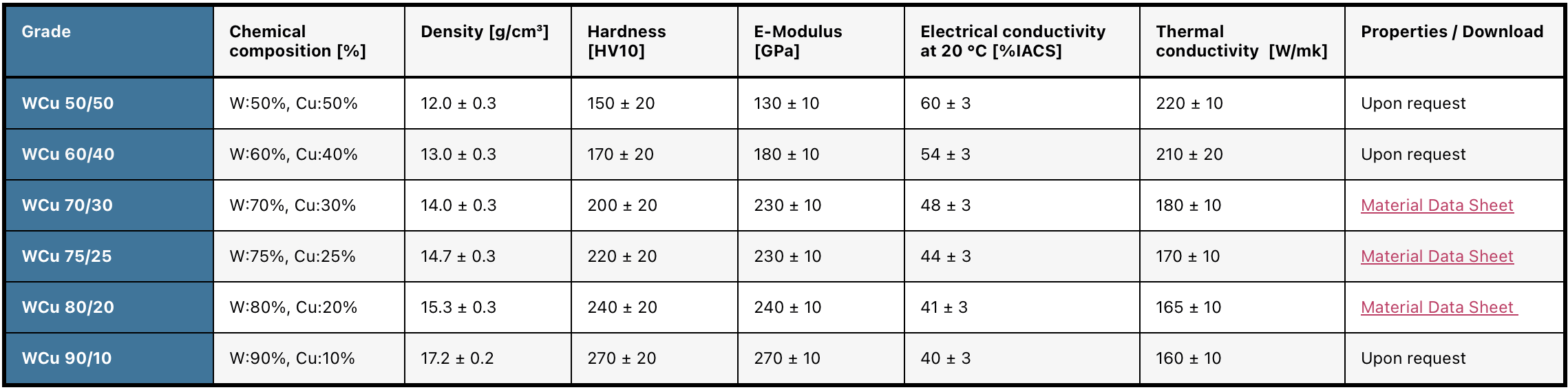

Grade | Chemical composition [%] | Density [g/cm³] | Hardness [HV10] | E-Modulus [GPa] | Electrical conductivity at 20 °C [%IACS] | Thermal conductivity [W/mk] | Properties / Download |
WCu 50/50 | W:50%, Cu:50% | 12.0 ± 0.3 | 150 ± 20 | 130 ± 10 | 60 ± 3 | 220 ± 10 | Upon request |
WCu 60/40 | W:60%, Cu:40% | 13.0 ± 0.3 | 170 ± 20 | 180 ± 10 | 54 ± 3 | 210 ± 20 | Upon request |
WCu 70/30 | W:70%, Cu:30% | 14.0 ± 0.3 | 200 ± 20 | 230 ± 10 | 48 ± 3 | 180 ± 10 | Material Data Sheet |
WCu 75/25 | W:75%, Cu:25% | 14.7 ± 0.3 | 220 ± 20 | 230 ± 10 | 44 ± 3 | 170 ± 10 | Material Data Sheet |
WCu 80/20 | W:80%, Cu:20% | 15.3 ± 0.3 | 240 ± 20 | 240 ± 10 | 41 ± 3 | 165 ± 10 | Material Data Sheet |
WCu 90/10 | W:90%, Cu:10% | 17.2 ± 0.2 | 270 ± 20 | 270 ± 10 | 40 ± 3 | 160 ± 10 | Upon request |
Metallography
Specifications and standards
Our WCu materials meet the specifications:
- ASTM B702 (Copper-Tungsten Electrical Contact Material)
- DIN EN ISO 5182 (Resistance welding materials for electrodes and auxiliary equipment)
Delivery program
Rods, bars, disks (in stock), plates, tubes and finished parts according to customer drawings
